AIRTEQ LOCK
STANDARD FEATURES AND OPTIONS FOR MECHANICAL LEVER TUMBLER LOCKS

STANDARD FEATURES:

  • Hot rolled steel deadbolt

  • Deadbolt has 5/8" throw

  • Single piece, bronze alloy paracentric key

  • 5 tempered brass lever tumblers

  • keyed one side(K1)

  • High tensile strength alloy steel case

  • All steel parts plated for corrosion resistance

MANUFACTURED SPECIFICATIONS:

  • Case: High strength alloy steel, bright zinc plated

  • Cover: Cold rolled steel, bright zinc plated

  • Bolt: Hot rolled steel, bright zinc plated

  • Bolt Throw: 5/8"

  • Bolt Size: 1 1/2" x 3/4"

  • Dimensions: 1 1/4" x 4 1/2" x 3"

  • Deadbolt Position Switch: SPDT, 15amp @ 125VAC, 500ma @ 125VDC. UL recognized

  • ASTM F1577 Lock Function P103

STANDARD FEATURES:

  • Stainless Steel latchbolt

  • Latchbolt has 7/16" throw

  • Slam-locks automatically when door is closed

  • Single piece, bronze alloy paracentric key cylinder

  • 5 tempered brass lever tumblers

  • keyed one side(K1)

  • High tensile strength alloy steel case

  • All steel parts plated for corrosion resistance

  • Strike keeper provided with lock

MANUFACTURED SPECIFICATIONS:

  • Case: High strength alloy steel, bright zinc plated

  • Cover: Cold rolled steel, bright zinc plated

  • LatchBolt: Stainless steel

  • Bolt Throw: 7/16"

  • Dimensions: 1 1/4" x 4" x 2 3/4"

STANDARD FEATURES:

  • Stainless Steel latchbolt

  • Latchbolt has 7/16" throw

  • Slam-locks automatically when door is closed

  • Single piece, bronze alloy paracentric key cylinder

  • 5 tempered brass lever tumblers

  • keyed one side(K1)

  • High tensile strength alloy steel case

  • All steel parts plated for corrosion resistance

MANUFACTURED SPECIFICATIONS:

  • Case: High strength alloy steel, bright zinc plated

  • Cover: Cold rolled steel, bright zinc plated

  • LatchBolt: Stainless steel

  • Bolt Throw: 7/16"

  • Bolt Size: 1" x 7/16"

  • Dimensions: 1 1/4" x 4" x 2 3/4"

  • ASTM F 1577 Lock Function P104

STANDARD FEATURES:

  • Stainless Steel latchbolt

  • Latchbolt has 7/16" throw

  • Slam-locks automatically when door is closed

  • Designed to accept most builders' hardware mortise key cylinders

  • Keyed one side(K1)

  • High tensile strength alloy steel case

  • All steel parts plated for corrosion resistance

MANUFACTURED SPECIFICATIONS:

  • Case: High strength alloy steel, bright zinc plated

  • Cover: Cold rolled steel, bright zinc plated

  • LatchBolt: Stainless steel

  • Bolt Throw: 7/16"

  • Bolt Size: 1" x 7/16"

  • Dimensions: 1 1/4" x 4" x 2 3/4"

  • Key Cylinder: Most Builders' hardware key cylinders, with Yale-type cam.

  • ASTM F 1577 Lock Function C104

STANDARD FEATURES:

  • Stainless Steel latchbolt

  • Latchbolt has 7/16" throw

  • Slam-locks automatically when door is closed

  • Mogul Key Cylinder

  • Keyed one side(K1)

  • High tensile strength alloy steel case

  • All steel parts plated for corrosion resistance

MANUFACTURED SPECIFICATIONS:

  • Case: High strength alloy steel, bright zinc plated

  • Cover: Cold rolled steel, bright zinc plated

  • LatchBolt: Stainless steel

  • Bolt Throw: 7/16"

  • Bolt Size: 1" x 7/16"

  • Dimensions: 1 1/4" x 4" x 2 3/4"

  • Key Cylinder: Airteq high security (6 pin) mogul cylinder

  • ASTM F 1577 Lock Function M104

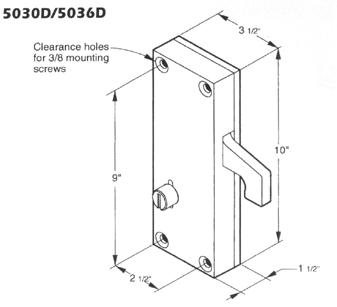

STANDARD FEATURES:

  • Alloy steel deadbolt hardened to Rc 60

  • Deadbolt has 5/8" lift

  • Single piece,bronze alloy paracentric key cylinder

  • Five tempered brass lever tumblers

  • Keyed one side (K1)

  • High tensile strength alloy steel case

  • All steel parts plated for corrosion resistance

MANUFACTURED SPECIFICATIONS:

  • Case: High strength alloy steel, bright zinc plated

  • Cover: Cold rolled steel, bright zinc plated

  • Deadbolt (Hook Style): 8620 HR Steel, bright zinc plated, hardened to Rc 60

  • Bolt Lift: 5/8"

  • Bolt Size: 1/2" Thick

  • Dimensions: 1 1/2" x 3 1/2" x 10"

  • Deadbolt Position Switch: SPDT 15 amp @ 125 VAC, 500ma@125 VDC. UL recognized

  • ASTM F 1577 Lock Function P311

STANDARD FEATURES:

  • Alloy steel deadbolt hardened to Rc 60

  • Deadbolt has 5/8" lift

  • Single piece,bronze alloy paracentric key cylinder

  • Five tempered brass lever tumblers

  • Keyed one side (K1)

  • High tensile strength alloy steel case

  • All steel parts plated for corrosion resistance

MANUFACTURED SPECIFICATIONS:

  • Case: High strength alloy steel, bright zinc plated

  • Cover: Cold rolled steel, bright zinc plated

  • Deadbolt (Hook Style): 8620 HR Steel, bright zinc plated, hardened to Rc 60

  • Bolt Lift: 5/8"

  • Bolt Size: 1/2" Thick

  • Dimensions: 1 1/2" x 3 1/2" x 10"

  • Deadbolt Position Switch: SPDT 15 amp @ 125 VAC, 500ma@125 VDC. UL recognized

  • ASTM F 1577 Lock Function P310

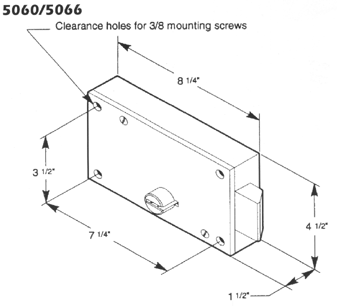

STANDARD FEATURES:

  • Cold rolled steel latchbolt with hardened steel insert pins

  • Latchbolt has 3/4" throw

  • Deadlocks and unlocks by key

  • Single piece, bronze alloy paracentric key cylinder

  • Five tempered brass lever tumblers

  • Keyed one side (K1)

  • High tensile strength alloy steel case

  • All steel parts plated for corrosion resistance

MANUFACTURED SPECIFICATIONS:

  • Case: High strength alloy steel, bright zinc plated

  • Cover: Cold rolled steel, bright zinc plated

  • Latchbolt: Cold rolled steel, bright zinc plated, with 1/4" diameter case hardened steel insert pins

  • Bolt throw: 3/4"

  • Bolt Size: 2" x 3/4"

  • Dimensions: 1 1/2" x 8 1/4" x 4 1/2"

  • Latchbolt Position Switch: SPDT 15 amp @ 125 VAC, 500ma @ 125 VDC. UL recognized

  • UL 10B: 3 hour fire rating

  • ASTM F 1577 Lock Function P106

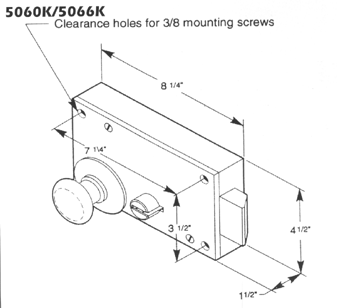

STANDARD FEATURES:

  • Cold rolled steel latchbolt with hardened steel insert pins

  • Latchbolt has 3/4" throw

  • Latchbolt may be retracted by key or knob

  • Deadlocks by key

  • Single piece, bronze alloy paracentric key cylinder

  • Five tempered brass lever tumblers

  • Keyed one side (K1)

  • High tensile strength alloy steel case

  • All steel parts plated for corrosion resistance

MANUFACTURED SPECIFICATIONS:

  • Case: High strength alloy steel, bright zinc plated

  • Cover: Cold rolled steel, bright zinc plated

  • Latchbolt: Colled rolled steel, bright zinc plated, with 1/4" diameter case hardened steel insert pins

  • Bolt throw: 3/4"

  • Bolt Size: 2" x 3/4"

  • Dimensions: 1 1/2" x 8 1/4" x 4 1/2"

  • Latchbolt Position Switch: SPDT 15 amp @ 125 VAC, 500ma @ 125 VDC. UL recognized

  • UL 10B: 3 hour fire rating

  • ASTM F 1577 Lock Function P107

STANDARD FEATURES:

  • Cold rolled steel latchbolt with hardened steel insert pins

  • Latchbolt has 3/4" throw

  • Slam-locking with automatic deadlocking

  • Single piece, bronze alloy paracentric key cylinder

  • Five tempered brass lever tumblers

  • Keyed one side (K1)

  • High tensile strength alloy steel case

  • All steel parts plated for corrosion resistance

MANUFACTURED SPECIFICATIONS:

  • Case: High strength alloy steel, bright zinc plated

  • Cover: Cold rolled steel, bright zinc plated

  • Latchbolt: Cold rolled steel, bright zinc plated, with 1/4" diameter case hardened steel insert pins

  • Bolt throw: 3/4"

  • Bolt Size: 2" x 3/4"

  • Dimensions: 1 1/2" x 8 3/4" x 5"

  • Latchbolt Position Switch: SPDT 15 amp @ 125 VAC, 500ma @ 125 VDC. UL recognized

  • UL 10B: 3 hour fire rating

  • ASTM F 1577 Lock Function P105

STANDARD FEATURES:

  • Cold rolled steel latchbolt with hardened steel insert pins

  • Deadbolt has 3/4" throw

  • Single piece, bronze alloy paracentric key cylinder
  • Slam-locking with automatic deadlocking

  • Five tempered brass lever tumblers

  • Keyed one side (K1)

  • High tensile strength alloy steel case

  • All steel parts plated for corrosion resistance

MANUFACTURED SPECIFICATIONS:

  • Case: High strength alloy steel, bright zinc plated

  • Cover: Cold rolled steel, bright zinc plated

  • Deadhbolt: Cold rolled steel, bright zinc plated, with 1/4" diameter case hardened steel insert pins

  • Bolt throw: 3/4"

  • Bolt Size: 2" x 3/4"

  • Dimensions: 1 1/2" x 5 1/2" x 3 3/4"

  • Deadbolt Position Switch: SPDT 15 amp @ 125 VAC, 500ma @ 125 VDC. UL recognized

  • ASTM F 1577 Lock Function P108
