Mounting Options:

Hollow Metal

Plate

Mounting Options:

Hollow Metal

• Mechanical operation - Unlocks by key.
• Automatic snap-locking - When door is closed.
• Durable case - Malleable iron case with 1/4" cold drawn steel cover.
• Corrosion resistance - Working parts are corrosion resistant.
• Heavy duty lever tumblers - 5 spring-temper brass tumblers, activated by heavy phosphor bronze springs. Precision fit to locking fence.
• Large solid latchbolt - Investment cast stainless steel 1" x 7/16" flush when retracted.
• Bolt throw - 7/16"
• Investment cast key cylinder - One piece bronze alloy with paracentric keyway.
• Supplied - with four 1/4-20 x 1/2" flat head security screws.
• Finish - Standard is USP

OPTIONAL FEATURES:

• Hollow metal mounting - Combined with 1/2" bolt projection for in-the-door pocket mounting.
• Square bolt - Flush and 1/2" projection stainless steel square bolt for special applications
• Finish - Galvanized

ACCESSORIES (Must be purchased separately):

• 17-4F - Keeper/pull for surface mounted lock.
• 17-4FPD - Food pass door with keeper (specify 3FP hinges separately)

Mounting Options:

Hollow Metal

• Maxi-Mogul® key cylinder - Provides maximum pick resistance. UL437 listed.
• Case - Malleable iron.
• Corrosion resistant - Working parts are corrosion resistant.
• Tamper resistant construction
• Latchbolt throw - 7/16". Flush when retracted, or ½" projection for hollow metal pocket installation.
• Large, solid latchbolt - Investment cast stainless steel, 1" x 7/16"
• Supplied - With four ¼-20 x 1-1/2" flat head security screws

• Square bolt - Flush and ½" projection stainless steel square bolt for special applications.
• 110 Mogul key cylinder - For existing applications.
• Cylinder finish - US4 standard,
• US26,US26D, US10 and US10B available
• Hollow metal mounting - Combined with ½" bolt projection for in the door pocket mounting.
• Keying - Master keying is available
• Finish - Galvanized

ACCESSORIES:

• 17-4F Keeper/pull for surface mounted lock
• 17-4FPD Food pass door with 17-4 keep/pull (specify 3FP hinges separately)

30  Series

STANDARD FEATURES:

• Automatic deadlocking (Series 30) - Deadlocks on door closure, unlocks by key. Key is removable in the latch position only.
• Mechanical operation (Series 30D) - Deadlocks and unlocks by key. Key is removable in both locked and unlocked condition.
• Durable case - Malleable iron case with 3/16" thick steel cover.
• Corrosion resistance - Working parts are corrosion resistant.
• Heavy duty lever tumblers - 5 spring temper brass tumblers, activated by heavy phosphor bronze springs. Precision fit to locking fence.
• Large, solid hookbolt - Galvanized, hardened steel, 1/2" thick.
• Bolt movement - 5/8" lift.
• Investment cast key cylinder - One piece bronze alloy with paracentric keyway.
• Finish - USP standard.

OPTIONAL FEATURES:

• Mounting - Hollow metal, grille, or plate door mounting.


  Hollow Metal

  Plate



• Finish - Galvanized


ACCESSORIES:

• 30-4BL - Mortise keeper with switch/mounting screws.
• 30-4DB - Mortise keeper with dustbox/mounting screws.
• 30-4F - Surface mounted keeper/mounting screws.

4BL

4DB

4F

60k Series

Mounting Options:

Hollow Metal	Plate
G Lock Mount	W Lock Mount

• Knob operation(60K)
  Knob will operate latchbolt unless deadlocked
• Mechanical operation-
  Locks and unlocks by key. A half-turn of the key. A full turn of the key, in the opposite direction, deadlocks the latchbolt.
• Snap-Locks Automatically when door is closed.
• Malleable Iron Case and 3/8" thick cold drawn steel cover
• Corrosion resistant working parts
• Latchbolt - solid steel, with two, concealed, hardened-steel roller pins to resist sawing.
  Latchbolt is galvanized.
• Lever tumblers made of spring-temper brass, activated by heavy, phosphur-bronze springs.
• Key cylinder - one piece, bronze alloy with paracentric keyway.
• Bolt size - 2"- 3/4"
• Bolt throw - 3/4"
• Finish - Case and cover USP, primed for paint.
• Knobs and roses (Series 60K)
  Solid brass, attached to a 3/8" square spindle by exposed set screws on one side, and a concealed cross-pin on the other. Knobs are provided for both sides unless specified otherwise.

Optional Features:

• Bolt projection may be varied to suit conditions. Consult factory for available variations.
• Finish - Case and cover USP, primed for paint.
• Mountings available for grille, hollow metal, plate or wood doors.
• Single knob (60K Series)
• Safety knob (60K Series)
• 60-4B - Mortise keeper
• 60-4BL - Keeper with switch
• 60-4DB - Keeper with dust box

4B

4BL

4DB

Mounting Options:

Hollow Metal	Plate
W Lock Mount

• Deadlocks automatically when door is closed.
  Unlocks by key.
• Malleable Iron Case and steel cover.
• Corrosion resistant working parts.
• Latchbolt - solid steel with two concealed,
  hardened-steel roller pins, to resist sawing.
  Latchbolt is galvanized.
• Lever tumblers made of spring-temper brass,
  activated by heavy, phosphor-bronze springs.
• Key cylinder -  one piece, bronze alloy with
  paracentric keyway.
• Bolt size - 2" - 3/4"
• Bolt throw - 3/4"
• Finish - Case and cover USP, primed for paint.

Optional Features:

• Bolt projection may be varied to suit conditions.
  Consult factory for available variations.
• Finish - Case and cover : galvanized for corrosion resistance.
• Mountings available for hollow metal, plate or
  wood doors.
• Mortise keeper                 70-4B
• Keeper with switch          70-4BL
• Keeper with dust box       70-4DB

4B

4BL

4DB

Mounting Options:

Hollow Metal	Plate
G Lock Mount

STANDARD FEATURES:

• Mechanical operation - Locks and unlocks by key. For key removal in locked position only, specify a single wing escutcheon on lock mounting or access door.
• Durable case - Drop forged case with 3/8" thick cold drawn steel cover.
• Corrosion resistance - Working parts are corrosion resistant.
• Heavy duty lever tumblers - Spring temper brass, activated by heavy phosphor bronze springs. Series 80 use five tumblers, Series 80-6 use six. Precision fit to locking fence.
• Large, solid deadbolt - Galvanized steel with three hardened steel roller pins, 2" x ¾". Projects ½" when retracted.
• Bolt throw - ¾"

OPTIONAL FEATURES:

• High security - Six tumbler model offers greater pick resistance.
• Bolt projection - May be varied to suit conditions, consult factory.
• Finish - Case and cover may be galvanized for corrosion resistance.
• Mounting - Hollow metal, plate or grille mounting.

ACCESSORIES (Must be ordered separately):

• 80-4B Mortise keeper
• 80-4BL Mortise keeper with switch
• 80-4DB Mortise keeper with dustbox
• 80-4F Surface mounted keeper

4B

4BL

4DB

4F

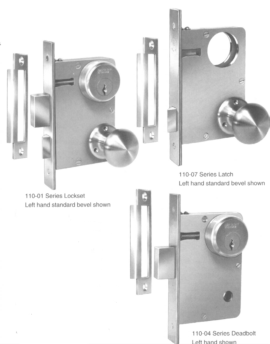

• Deadbolt operation - Lock and unlock by key.
• Latchbolt snap-locking - When door is closed, operated by knobs.
• Maxi-Mogul key cylinder - Level 1 cylinder standard, higher security levels available on request.
• Heavy duty knobs - Solid brass knobs and roses attached to spindle by exposed set screws on one side, and concealed cross-pin on the other. Provided on both sides unless otherwise specified. 3/8" square spindle on diamond.
• Armored front - Adjustable from flat to 1/8" in 2" bevel. Consists of a galvanized steel backplate, and brass faceplate.
• Durable case - Cast brass alloy.
• Corrosion-resistance - Working parts are corrosion-resistant material.
• Large, solid brass latch/deadbolt -
• Latchbolt size: 1-1/4" x 9/16"
• Deadbolt size: 1-3/4" x 5/8"
• with hardened steel inserts to resist sawing.
• Bolt/latch throw - Deadbolt: 1" throw
• Latchbolt: ½" throw, flush when retracted
• Supplied - With strike and mounting screws.
• Finish - Trim, US4 satin brass

• Mogul cylinder - Specify "MO" for keying locks into existing 110 Series Mogul key system.
• Single knob - Specify side.
• Safety knob - Specify "SK".
• For safety knobs on both sides, specify double "SK"
• Modification for builders hardware type cylinders - Locks may be modified to accept builders hardware cylinders. Cylinders must be 1-5/32" diameter, and 1-1/4" long, from underneath head including cam. Must be removable cam. Cylinders and keys must be sent to Folger Adam Security Inc. for assembly into locks.

ACCESSORIES:

• 110-4DB - Mortise strike with dust box and mounting screws
• 110-4BL - Mortise strike with dust box , switch and mounting screw

4BL

4DB

• Automatic deadlocking - When door is closed.
• Knob operation - Provides staff convenience of knob operation, with security of lockout feature.
• Maxi-Mogul key cylinder - Level 1 cylinder standard, higher security levels available on request.
• Heavy duty knobs - Solid brass knobs and roses, attached to spindle by exposed set screws on one side, and, depending upon function, by either concealed set screws, or a concealed cross-pin on the other. 3/8" square spindle on diamond.
• Armored front - Adjustable from flat 1/8" in 2" bevel. Consists of stainless steel backplate and brass faceplate.
• Durable case - Cast bronze alloy with closed front on case and latch-bearing surfaces for strength.
• Corrosion-resistance - Working parts are stainless steel or other corrosion-resistant metal.
• Large, solid latchbolt - 1-3/8" x 5/8", stainless steel.
• Latchbolt movement - ¾" throw, flush when retracted.
• Field reversible - Latchbolt and deadlock actuator may be rotated to reverse handing, as may cylinder and knobs.
• Supplied - With strike and mounting screws.
• Finish - Trim, US4, satin brass

• Mogul cylinder - Specify "MO" for keying locks into existing Mogul system.
• Modification for builders' hardware key cylinder - May be modified to accept a builders' hardware cylinder. Cylinder must be 1-5/32" diameter, 1-1/4" long (from under head including cam), and have a removable cam.

NOTE: Cylinders and keys must be sent to Folger Adam Security Inc. for assembly in locks.

• Safety knob set - Specify "SK".
• For safety knobs on both sides, specify "Double SK".
• Indication switches - To provide remote indication of lock status, one or two switches may be supplied, depending upon circuit requirements. Specify switch options by letter:
  "A" Switch - An internal switch to indicate that the latchbolt is deadlocked.
  "C" Switch - A switch installed behind the strike to indicate that the latchbolt is extended into the strike.

Note: When a door is open, the deadlock actuator and/or "C" switch may be manually depressed, giving a false indication that the door is closed and locked. To eliminate this false indication, a door position switch should be installed and wired in series with the indication switches. Then, a secure indication can be produced only after three conditions have been met:
1) the indication switch button is depressed;
2) the lockbolt is extended;
3) the door is closed.

• Fits ANSI door preparation - Standardized installation in hollow metal doors modified to accommodate lock body thickness of 1-1/8". (ANSI A156.13, Grade 1)
• Door thickness - Doors must be 1-3/4" to 2-1/2" thick.
• Armored front - 8" x 1-1/4" steel, 10 gauge.
• High strength case and cover - 12 gauge wrought steel, zinc chromated.
• Corrosion-resistant working parts - Internal working parts are stainless steel or zinc chromated steel.
• Durable hubs - Solid stainless steel construction, on the square.
• Spindle - 11/32" cold drawn steel.
• Latchbolt - ¾" throw stainless steel, bolt head.
• Deadbolt - 1" throw stainless steel with two hardened roller inserts to inhibit sawing.
• Latchbolt size - 11/16" x 1-1/4".
• Deadbolt size - 11/16" x 1-1/2".
• Reversible - Locks are field reversible. Handing, if known, should be specified upon odering.
• Key cylinder - Furnished with UL437 listed, level 1 security Maxi-Mogul Cylinder.(D9300)
• Key Cylinder - Furnished with Builders Hardware 6 pin Cylinder(A9300)
• Screws - Torx tamper-resistant screws (require special screwdriver)
• Taper-resistant - All bolts, including the auxiliary latchbolt are fully tunneled to help prevent jamming of the mechanism with foreign material.
• Strike - Supplied with curved-lip strike having 1-1/4" lip length, and dust box. Buffed stainless steel only.
• Finish - US4 (ANSI/BHMA 606), US26 (ANSI/BHMA 625), US26D (ANSI/BHMA 626), US32 (ANSI/BHMA 629), US32D (ANSI/BHMA 630).

OPTIONAL FEATURES:

• Strike switch - Strike mounted indication switch for electrically monitored systems.

TRIM DESIGNS:

Knobs:
Specify KR for knob and rose trim with lock.
Material: Brass or stainless steel, detention design.
Dimensions: 2-1/4" diameter.
Safety knob: Specify SK knob and side installed on.

Roses:
Material: Brass or stainless steel.
Dimensions: 2-11/16" diameter, concealed trim design.

LeverTrak Handle Guide Sets
LT & LTE Handle Guide Sets should be specified for abusive environments, or high frequency doors. The track prevents damage to mortise locks from over-travel of the handle.(For complete details on the LeverTrack click here)

CYLINDER DATA:
Maxi-Mogul Key Cylinders-
D9300 Series Mortise Locks are provided with Maxi-Mogul key Cylinders, six pin tumbler.
Keys are sold separately, and registered at the factory.
Cylinder collar- An adjustable cylinder collar will be provided to suit the cylinder length and door thickness when both locks and cylinders are ordered. If not specified, rings will be for 1-3/4" thick doors.

Keys must be ordered separately.

Trim/cylinder accessories- The following trim items will be provided per the lock function specified.

LCK (Limited Control Key)-

Modification for Models D9336, D9365, D9366, D9367.Factory provided cylinder is modified to allow change key a limited rotation to retract the latchbolt. Master key is unlimited and will operate both latch and deadbolt.

Thumbturn and escutcheon-

Furnished with Models D9304, D9313, D9317, D9320, D9321, D9364 and D9367.

Thumbturn furnished with Model D9319.

Supplied with Torx tamper-resistant No. 6 x 3/8" screws.

STRIKES:

D9300 Series Locks are supplies with a curved lip strike having a 1-1/4" lip length for use with doors 1-3/4" to 2" thick. Buffed stainless steel finish only.
Strike with indication switch- For electric monitoring.
Strike box - Wrought steel, zinc plated, reversible for installation with flat or curved-lip strike.
Special lip lengths - Strikes are installed on the same vertical centerline as the lock. 1-1/4" lip length is standard. 1-1/2" lip length is optional for doors from 2-1/8" to 2-1/2" thick.
