Maintenance Guide

Detention Door and Frame Construction Retro Fitting mechanical locks with Electro-mechanical locks. Lock Used: Southern Steel 1058M

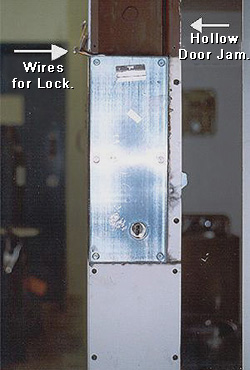

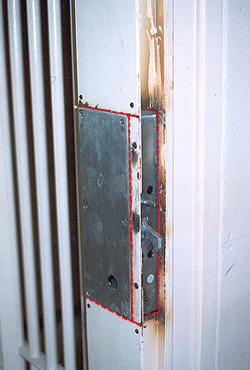

Figure 1		Figure 2
As shown in these pictures, retro fitting mechanical locks to electro-mechanical locks can be made to look as if they were done straight from the factory. As shown above, the mechanical lock is first removed. A space is then cut out (Figure 1) of the door jam (shown by the dotted red lines) and removed to allow the fitting of the new electro-mechanical lock. The wiring is run up (Figure 2) inside the door jam and the panel later replaced once the wiring is complete.

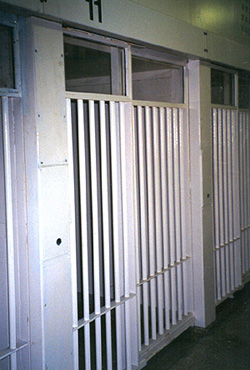

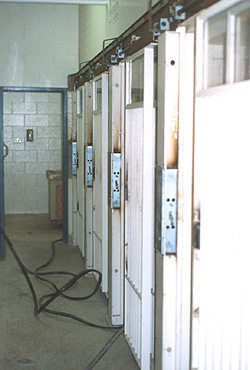

Before Final Paint		After Final Paint
After paint has been applied, the doors appear as if nothing was done to them.
