3150LX
ELECTRIC LOCKING SYSTEMS
FOR GROUPS OF SLIDING CELL DOORS. Maximum security.
Click Here for
Quote Request
Please Click on Captions below to display / hide information:
 FUNCTIONS
ELECTRIC -
A remote switch activates a motor which raises a vertical lock bar and propels
the door open or closed. Individual lamp indicators on the control panel show
locked/unlocked condition. A single switch can provide group unlocking.
MECHANICAL - In the absence of electrical power, doors may be
individually unlocked with a manual release tool. Door movement is by hand and
door will relock in either fully open or closed position.
EMERGENCY GANG RELEASE - In an emergency, all doors in a cell
line may be simultaneously unlocked from a mechanical release cabinet at the end
of the cell line. While in emergency release mode, doors will not relock in any
position.
STANDARD
FEATURES
- Bottom door guide
- Door hanger
- Mechanical release cabinet
- Screwed on removeable cover panel
- Sloped-front cover box
- Vertical lock bar assembly
OPTIONAL
FEATURES
PILASTER RELEASE
- (In lieu of mechanical release cabinet.) Hip-high
paracentric keyed mechanical release mounted in a full-height pilaster adjacent
to the receiving jamb. Specify “3150LXP-1” keyed one side.
ELECTRIC KEYSWITCH - Paracentric or mogul keyed local electric
control
switch mounted below mechanical release mechanism in pilaster.
Specify “3150LXPK-1” for paracentric keyed one side.
Specify “3150LXPKM-1” for mogul keyed one side.
HINGED COVER PANELS - Cover panels are provided hinged to the
cover box
assembly for maintenance access. Specify “3150LXHC.”
REMOTE PANEL LOCK SYSTEM - Specify “3150LXRP.”
FACTORY WIRED CONTROL CABLE - Specify “3150LXWC.”
THREE HOUR FIRE DOOR RATING AVAILABLE

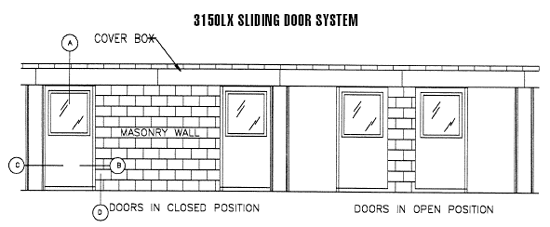

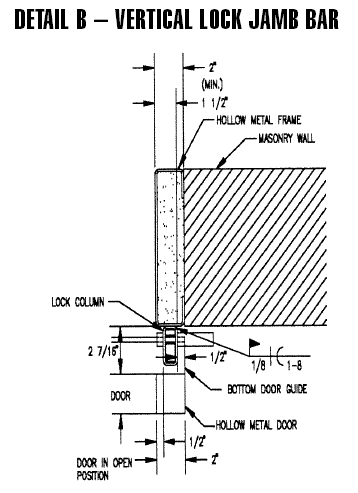

DETAIL C – RECEIVER DETAIL D – BOTTOM DOOR GUIDE SECTION

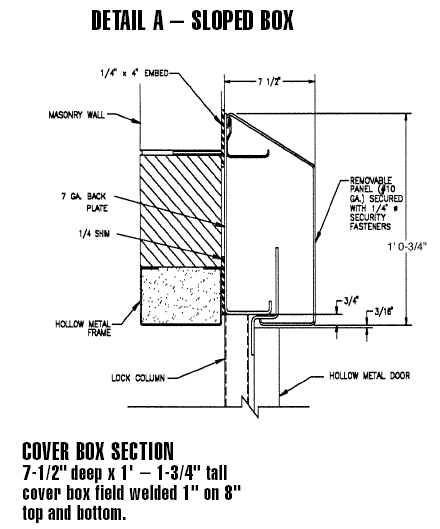

COVER BOX SECTION
7-1/2" deep x 1' – 1-3/4" tall
cover box field welded 1" on 8"
top and bottom.
DIMENSIONAL
DATA 1
DIMENSIONAL
DATA 2
DIMENSIONAL
DATA 3
DIMENSIONAL
DATA 4
DIMENSIONAL
DATA 5
SPECIFICATIONS
- COVER BOX: 1' 0 - 3/4" H x 7-1/2"D
- COVER BOX MATERIAL: 7 gauge steel plate
- REMOVABLE PANEL: 10 gauge steel
- DOOR ROLLERS: 3" diameter, machined steel with sealed
bearings
- VERTICAL LOCK BAR
- DIMENSIONS: 5/8" SQ by full height of door
- FINISH: Prime paint
- DOOR HANGER: 7 gauge steel plate
- ELECTRICAL: Motor: 1/20 HP, 115 VAC, 60 Hz., single phase
power, 1.2 amps.
- WIRE REQUIREMENTS: When electric operation of the door is
from a remote station, a minimum of five conductors (minimum 14 gauge) are required
between the control point and the door, except for those models
having the letter “K” (keyswitch) in the suffix. Keyswitch models
require minimum six conductors.
|
