3165LX
ELECTRIC LOCKING SYSTEMS
FOR INDIVIDUAL SLIDING DOORS. Maximum security.
Click Here for
Quote Request
Please Click on Captions below to display / hide information:
 FUNCTIONS
ELECTRIC - A remote
switch activates a motor which raises a vertical lock bar and propels the door
open or closed.
MECHANICAL - Manual unlocking is provided for each device. After being
manually released, door movement is by hand. The door
automatically deadlocks when moved to the fully open or closed position.
STANDARD
FEATURES

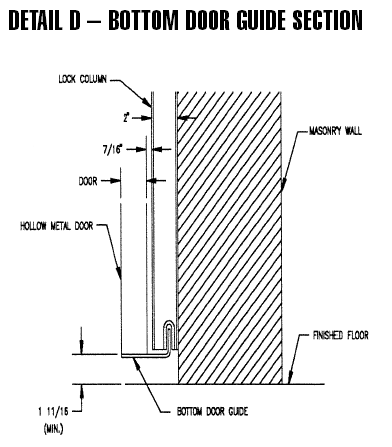

- Bottom door guide
- Door hanger
- Local mechanical release at cover box
- Screwed on removeable cover panel
- Sloped-front cover box
- Vertical lock bar assembly
OPTIONAL
FEATURES

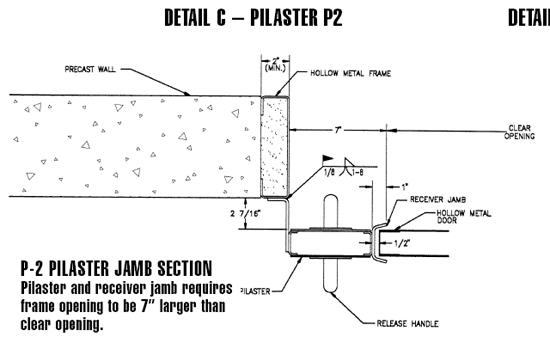

PILASTER RELEASE
- Hip-high paracentric keyed mechanical release mounted in a full-height pilaster
adjacent to the receiving jamb. Specify “3165LXP-1” keyed one side.
Specify “3165LXP-2” keyed two sides.
ELECTRIC KEYSWITCH -Paracentric or mogul keyed local electric
control switch mounted below mechanical release mechanism in pilaster.
Specify “3165LXPK-1” for paracentric keyed one side.
Specify “3165LXPK-2” for paracentric keyed two sides.
Specify “3165LXPKM-1” for mogul keyed one side.
Specify “3165LXPKM-2” for mogul keyed two sides.
HINGED COVER PANEL - Cover panel is hinged to cover box assembly
for maintenance access. Specify “3165LXHC”.
THREE HOUR FIRE DOOR RATING AVAILABLE.
DIMENSIONAL

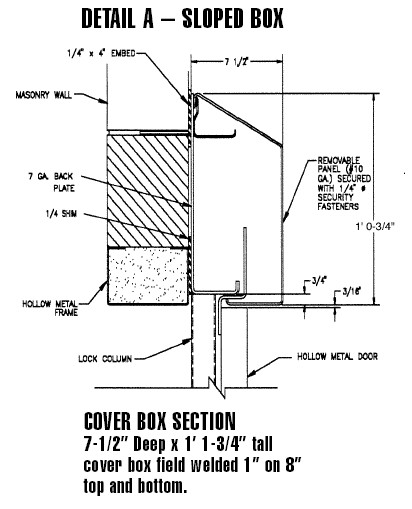

DATA 1
DIMENSIONAL
DATA 2

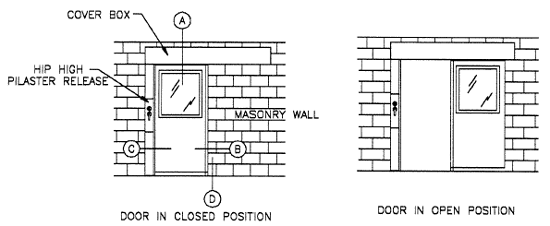

DIMENSIONAL
DATA 3
DIMENSIONAL
DATA 4
DIMENSIONAL
DATA 5
SPECIFICATIONS
- COVER BOX: 1' 0-3/4"
H x 7-1/2" D
- COVER BOX MATERIAL: 7 gauge steel plate
- REMOVABLE PANEL: 10 gauge steel
- DOOR ROLLERS: 3" diameter, with sealed
bearings
- VERTICAL LOCK BAR DIMENSIONS:
5/8" SQ by full height of door
- FINISH: Prime paint
- DOOR HANGER: 7 gauge steel plate
- ELECTRICAL: Motor: 1/8 HP,115 VAC, 60 Hz.,
single phase power, 1.5 amps.
- WIRE REQUIREMENTS: When electric operation
of the door is from a remote station, a minimum of five conductors (minimum 14
gauge) are required between the control point and the door, except for those models
having the letter “K” (keyswitch) in the suffix. Keyswitch models
require minimum six conductors.
|
