8050L
ELECTRIC LOCKING SYSTEM
FOR GROUPS OF SLIDING CELL DOORS. Maximum
security.
Click Here for
Quote Request
Please Click on Captions below to display / hide information:
 FUNCTIONS
ELECTRIC -
A remote switch activates pneumatic cylinders which raise a vertical lock bar
and propel the door open or closed. Individual lamp indicators on the control
panel show locked/unlocked condition. A single switch can provide group unlocking.
MECHANICAL - In the absence of pneumatic or electrical power,
doors may be individually unlocked with a manual release tool. Door movement is
by hand and door will
relock in either fully open or closed position.
EMERGENCY GANG RELEASE - In an emergency, all doors in a cell
line may be simultaneously unlocked from a remote location using a pneumatic release
system. While in emergency release mode, doors will not relock in any position.
STANDARD
FEATURES
- Bottom door guide
- Door hanger
- Pneumatic emergency release
- Screwed on removeable cover panel
- Sloped-front cover box
- Vertical lock bar assembly
OPTIONAL
FEATURES
PILASTER RELEASE
– (In lieu of pneumatic release system.) Hip-high paracentric keyed mechanical
release
mounted in a full-height pilaster adjacent to the receiving jamb. Specify “8050LP-1”
keyed one side.
ELECTRIC KEYSWITCH – Paracentric or mogul keyed local electric
control switch mounted below mechanical release mechanism in pilaster.
Specify “8050LPK-1” for paracentric keyed one side. Specify “8050LPKM-1”
for mogul keyed one side.
HINGED COVER PANELS - Cover panels are provided hinged to the
cover box assembly for maintenance access.

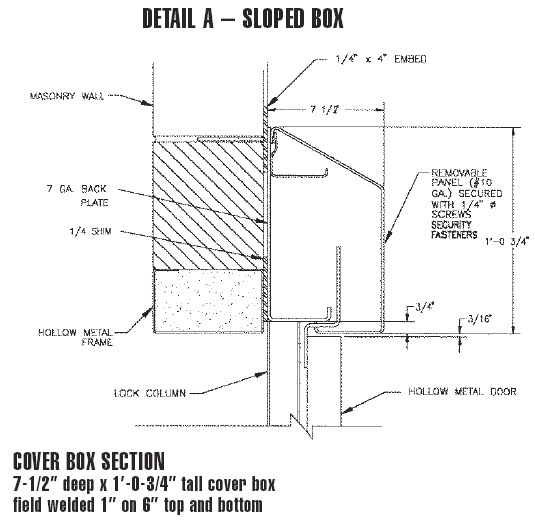

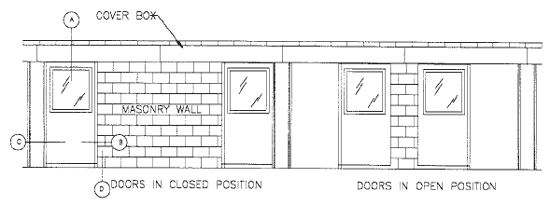

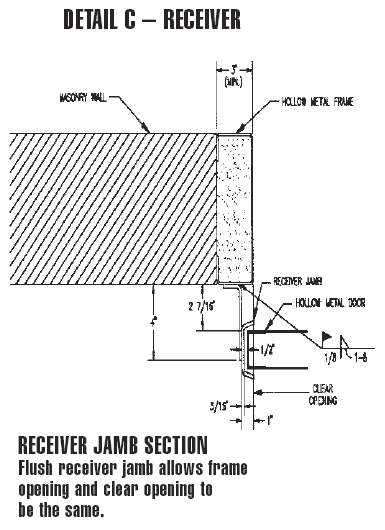

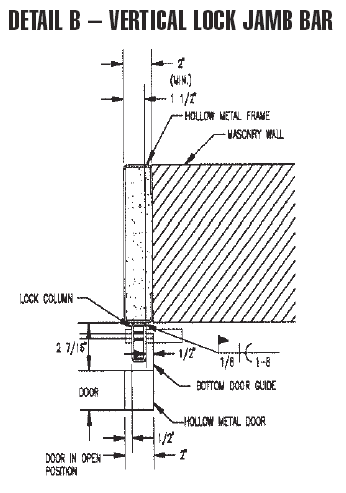

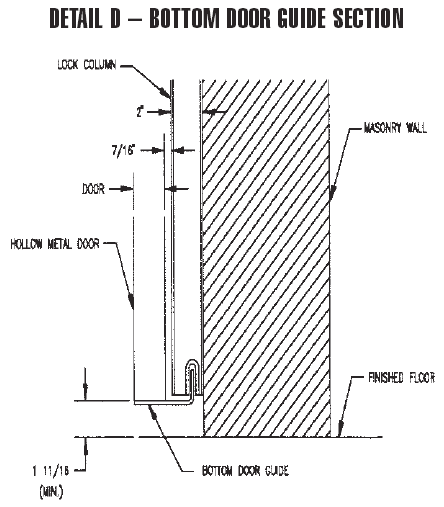

DIMENSIONAL
DATA 1
DIMENSIONAL
DATA 2
DIMENSIONAL
DATA 3
DIMENSIONAL
DATA 4
DIMENSIONAL
DATA 5
SPECIFICATIONS
- COVER BOX: 1' 0-3/4" H x 7-1/2"
D
- COVER BOX MATERIAL: 7 gauge steel plate
- REMOVABLE PANEL: 10 gauge steel
- DOOR ROLLERS: 3" diameter, machined
steel with sealed bearings
- VERTICAL LOCK BAR DIMENSIONS: 5/8" SQ
by full height of door.
- FINISH: Prime paint
- DOOR HANGER: 7 gauge steel plate
- ELECTRICAL: 24 VDC
- WIRE REQUIREMENTS: Minimum five 24 volt conductors
are required between the control point and the door, except for those models having
the letter “K” (keyswitch) in the suffix. Keyswitch models require
minimum six conductors.
- AIR REQUIREMENTS: Air consumption 1.9 cubic
inches per unlock operation at 80 PSIG.
|
