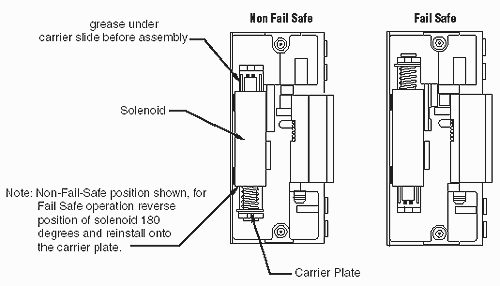

Maintenance and Lubrication of 200 Series Strikes Under normal usage the 200 strike should be cleaned and lubricated once a year to maintain its reliability. In applications with high usage or dirty conditions, more frequent service may be necessary. Lubrication points are identified in the illustration. When servicing a 200, inspect the internal parts for excess wear for breakage and lightly lubricate per the instructions. Lubricate with HPG Grease , available here. Note: Never lubricate any strike with oil, such lubrication collects dirt and forms an abrasive and sticky compound that may affect the function of the strike. To Inspect and Lubricate the Strike: Remove the strike from the face plate held on by four (4) 8_32, 1/4 FHPMS.  Remove the strike frame from the strke. Remove the top cover, held on by two (2) 6-32 x 3/8 FHPMS. Remove the solenoid from the strike case. Remove the solenoid slide carrier from the case. Check and remove any old excess lubricant in the case and the slide carrier. Lightly lubricate the area in the case where the slide career surface rests Reinstall the slide carrier into the case. Check the solenoid and plunger for excess wear, dirt, grime, or oil. Reinstall the solenoid assembly to the case. Reinstall the top cover, keeper guard and face plate.
